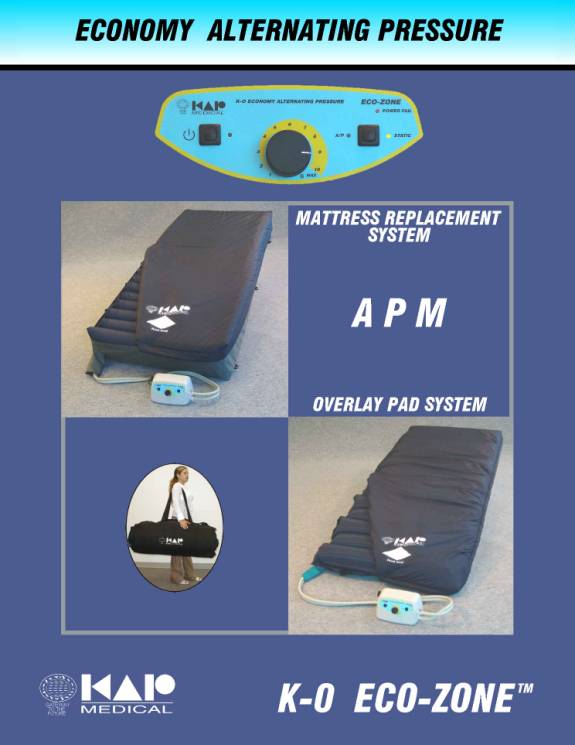

K-0
ECO-ZONEÔ
Economy
Alternating Pressure System
The
Most Economic Means Of Alternating Pressure
(A/P) Therapy.
The
most
affordable, state of the art micro-controller driven ALTERNATING
low
interface pressure relief system available in the market today.
The first
and the only air pump driven alternating pressure therapy control unit
where
the desired patient comfort pressure levels are achieved by varying the
airflow
of the pump. WEIGHT CAPACITY UP TO 360 LBS.
Control Unit
(K-0)
Single 8~10 LPM (liters
per minute)
air pump.
Provides software
flexibility
(custom pressures, times, and functions), and high reliability.
Easy to use Power
“on/stand by” and
AP/Static push button switches with LED’s to select required therapy
modes.
Easy to use knob to
select MAX Flow
mode, and is also used to adjust patient comfort pressure levels from
Soft 1 to
Firm 10 (8 ± 4 to 32 ± 6 mmHg or customer
desired pressures).
Micro-controller adjusts
the
performance of the pump to obtain the desired patient comfort
level. In
Static and Alternating modes the pump is operated at less than 50% of
its
maximum capacity, thus increasing its original life cycle by 100%.
Max Flow mode with 30
minutes timer
for rapid inflation of the mattress.
Provides effective static
or
alternating pressure therapies. In A/P mode the 10 min A/P cycle
time is
fixed (custom times can be set upon request), and provide dynamic A/P
in the
entire mattress. Holds air for hours in the event of power
failure, or
during patient transportation.
Lock switch (Optional) on
the back
of the unit completely locks the control panel, to eliminate tampering
of the
patient settings, including power switch.
Audiovisual alarms in the
event of
power outage. Internal memory always retains current settings during
power
outage, will resume desired operation upon power restoration.
Dual rugged quick
disconnect airflow
connectors for rapid attach and CPR deflate functions.
Control unit is reliable,
quiet,
compact and lightweight. For quick inflate please use our
portable K-39
RIDÔ (Rapid Inflator /
Deflator) unit.
Support
Surface (K-0M)
Therapeutic support
surface consists
of superior quality, urethane coated nylon air cushions (16 cell
overlay or
16/20 cell mattress) to provide effective A/P therapy with low
interface
pressures. Pad overlays or cell overlays are 5” or 7” high, and
mattress
replacements are 8” or 10” high.
OPTIONAL constant air pressure
side bolsters
/ foam bolsters help contain the patient on the mattress. Air
bolsters
can be deflated for easy patient access into and out of the mattress,
and also
for easy patient procedures.
Low friction and low
shear force producing,
urethane coated breathable nylon top sheet, which is liquid proof and
highly
vapor permeable.
2” convoluted safety foam
base or 2”
optional air pad base (8” & 10” mattress) to provide additional
support to
the patient in the event of power failure.
The air cells are
connected to the
manifold using quick connectors and fastened to the base. The top
sheet
is zippered to the base.
Bi-Lumen tubing assembly
with dual,
rugged quick disconnect connectors for rapid attach and CPR deflate
function. Holds air for hours during power failure.
Complete support surface
is made of
superior quality materials and is modular in construction. All of
the
components such as manifold, tubing assembly, air cushions, top sheet,
and foam
base are interchangeable, and can be easily cleaned or detached for
laundry.
Lightweight support
surface can be
rolled up easily and has two handles or two shoulder straps, which can
be used
to carry by hand or over the shoulder.
SACf Support Air
Cushion (K-140)
SACf (Optional) foot support
air cushion can be used to support
patient’s feet and to provide zero interface pressures in the heel area.
K-0MS
TECHNICAL DATA
|
|
CONTROL UNIT K-0
|
SUPPORT SURFACE K-0M /
K-0opad / K-0ocell
|
|
Input Voltage |
120 VAC, 60 Hz, 1 A,
220/240 VAC, 50 Hz, .5 A |
5” / 7” (12.7 /
17.8) cm high mattress overlay. |
|
Power Cord |
14’ (427cm) long hospital
grade detachable. |
8” / 10” (20.5 / 25) cm
high mattress replacement. |
|
Fuse Protection |
1 Amp fast acting dual
fuses. |
36” (91) cm wide mattress. |
|
A/P Cycle Time |
Fixed 10 Minutes (custom
time can be programmed). |
76”/80”/84” (193/203/213)
cm long mattresses. |
|
Dimensions (LWH) / Weight |
10” x 5” x 5” (25cm x
13cm x 13cm) / 5 lbs. (2.2 Kg.). |
Standard Size: 80” x 36”
x 5” (Overlay Mattress), 80”x36”x10” (Mattress Replacement), / 23 lbs.
(10.5 Kg.). Custom sizes available. |
|
Weight Capacity |
Pediatric to Standard
Patients. 360 lbs (160 Kg). |
360 lbs (160 Kg). |
|
Safety Agency Approvals |
To standard for
safety of Medical Electrical equipment. An FDA Registered
Company, Product Is FDA Listed. |
Conforms To: UL STD
2601-1 with respect to Electrical Shock, Fire and Mechanical Hazards. Certified
To: CAN/CSA STD C22.2 No. 601.1 CE
Mark:
|
Warranty
|
One year
limited, parts and labor. |
One year
limited, parts and labor. |
MADE IN USA
Call or
visit our website for interface pressure map.
Ô
1395 Pico
Street, Corona,
California 92881 1 USA
1-866-KAP-MED
1 (866 527
6331) 951-340-4360 www.kapmedical.com
